Simpson Strong-Tie 5/8 X 4″ Titen HD Heavy-Duty Screw Anchor (Box Of 10) THDB62400H

Original price was: $30.59.Current price is: $21.41.

Shop with Confidence

Multiple payment options for secure shopping with SSL

Friendly, efficient service, always online.

No-Questions-Asked Returns

Simpson Strong-Tie

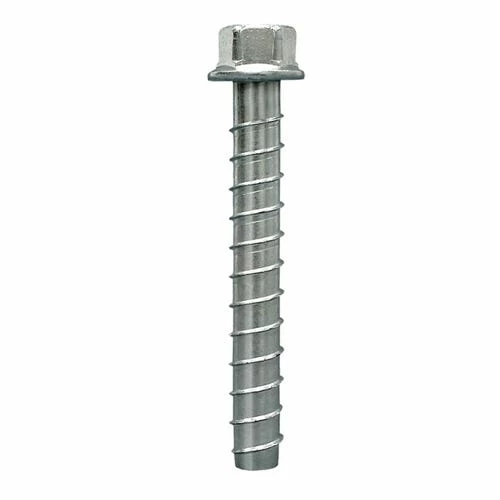

5/8 x 4″ Titen HD Heavy-Duty Screw Anchor (Box of 10) THDB62400H

The original high-strength screw anchor for use in cracked and uncracked concrete; as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed and tested in dry; interior; non-corrosive environments or temporary outdoor applications; the Titen HD demonstrates industry-leading performance even in seismic conditions.

FEATURES:

Qualified for static and seismic loading conditions.
Thread design undercuts to efficiently transfer the load to the base material.
Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility.
No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits.
Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors.
Hex-washer head requires no separate washer; unless required by code; and provides a clean installed appearance.
Removable — ideal for temporary anchoring (e.g.; formwork; bracing) or applications where fixtures may need to be moved.
Reuse of the anchor to achieve listed load values is not recommended.
Code listed under IBC/IRC in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete per ICC-ES ESR-2713.
Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056.

SPECIFICATIONS:

Material	Carbon steel
Coating	Zinc Plated
Size (in.)	5/8″ x 4″
Drill Bit Dia. (in.)	5/8″
Wrench Size (in.)	15/16″
Recommended Fixture Hole Size (in.)	3/4″ to 13/16″
