FallTech Temporary 60′ 4-Person HLL Lifeline Kit 772060

FallTech

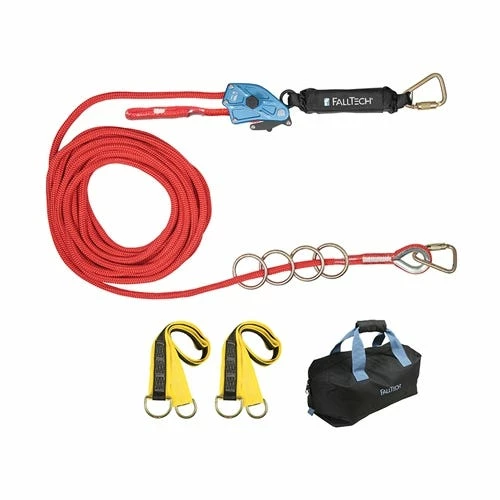

Temporary 60′ 4-Person HLL Lifeline Kit 772060

The FallTech 4-Person Temporary Horizontal Lifelinesare complete engineered systems containing all of thecomponents necessary for quick and simple installation.

FEATURES:

• High-strength; durable 5/8 double braid polyester rope lifeline with steel thimble and stitched end-termination
• 18″ gear bag provides suitable storage and transportation of the HLL system
• Exclusive line tensioner assembly with integral energy absorber and anchorage-end carabiner
• Complies with OSHA 1926.502
• Includes 4 connecting rings; 2 heavy-duty pass-through anchor straps and additional thimble-end carabiner

SPECIFICATIONS:

Material Specifications
Rope	5/8″ Double-braid Polyester Rope;6;000 lbs. Min. Static Strength
Connecting Rings	Plated Alloy Steel5;000 lbs. Min. Static Strength
Carabiners	Plated alloy steel; 5;000 lbs. Min. StaticStrength with 3;600 lbs. gate strength
Sling Anchors	Polyester webbing with plated AlloySteel D-rings; 5;000 lbs. Min. StaticStrength
Energy Absorber	Polyester Tear-away
Tensioner	Aluminum; Alloy and Stainless Steel6;000 lbs. Min. Static Strength

Performance Specifications
User Capacity	Max. 4 users 130 lbs.to 310 lbs. each
System Strength	6;000 lbs. MinStatic Strength

Relevant Standards
OSHA	1926.502

“
